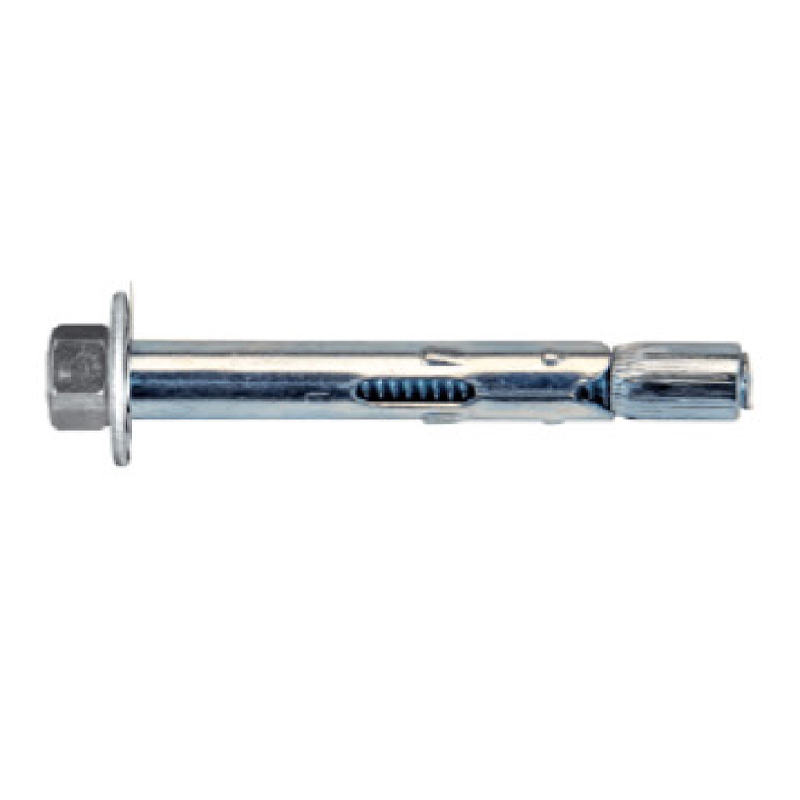

Sleeve anchors are a type of concrete anchor that consists of several key components, each serving a specific role in their design and function:
Sleeve: The sleeve, also known as the anchor body or outer sleeve, is a cylindrical tube made of a durable material, typically metal. The sleeve has threads on its exterior surface that grip the surrounding concrete or masonry when the anchor is installed. The sleeve is designed to expand and wedge itself into the substrate when the anchor is tightened.
Nut: The nut is a threaded fastener that is typically hexagonal (hex) in shape. It is used to secure the object or structure being anchored to the anchor. The nut is threaded onto the exposed end of the sleeve after the anchor is inserted into the pre-drilled hole. When the nut is tightened, it pulls the anchor, causing the sleeve to expand and create a secure connection within the concrete.
Threads: The threads on the exterior of the sleeve are crucial to the anchor's function. As the nut is tightened, it pulls the anchor up through the sleeve. This action causes the sleeve to expand against the walls of the pre-drilled hole, creating friction and tension that holds the anchor in place. The threads also provide additional stability and prevent the anchor from loosening or pulling out of the substrate.
The design of sleeve anchors allows them to create a secure and reliable connection within concrete or masonry. The expansion mechanism, which relies on the sleeve and threads, is the key feature that distinguishes sleeve anchors from other types of concrete anchors. This mechanism ensures that the anchor remains firmly in place, providing stability and load-bearing capacity for various applications. The specific materials used for the sleeve and nut can vary, with options including zinc-plated steel, stainless steel, and other materials chosen based on factors like corrosion resistance and load requirements.
What is the process for installing sleeve anchors?
Materials and Tools Needed:
Drill with a hammer drill function
Masonry bit (carbide-tipped) of the appropriate size for the anchor
Wrench or socket set
Safety glasses and ear protection
Dust mask (if drilling in concrete)
Select the Right Anchor: Choose the appropriate size and type of sleeve anchor for your application, considering the substrate material, load requirements, and environmental conditions.
Mark the Drilling Locations: Mark the locations where you intend to install the anchors. Use a level or plumb line to ensure accurate placement.
Drilling: Using a hammer drill with a carbide-tipped masonry bit, drill a hole into the concrete or masonry substrate. The hole should be the same diameter as the sleeve anchor and deep enough to accommodate the entire length of the anchor, plus any additional space for the nut and washer.
Clear the Hole: Remove any debris or dust from the drilled hole. A vacuum or compressed air can be helpful for this step.
Insert the Sleeve Anchor: Insert the sleeve anchor into the hole with the threaded end first. Make sure it is flush with the surface or slightly below it.
Thread the Nut: Thread the nut onto the exposed end of the anchor. Ensure that the nut is tightened securely but do not overtighten. Overtightening can damage the anchor or weaken its grip.
Tighten the Nut: Use a wrench or socket set to tighten the nut. As you do this, the anchor will be pulled up through the sleeve, causing it to expand against the walls of the hole. This expansion creates a tight, secure fit within the substrate.
Check for Proper Tightening: Once the nut is tightened, check the anchor to ensure it is secure and flush with the surface. The nut should be tightened until it is flush with the top of the anchor.
Complete the Installation: Repeat the above steps for all the sleeve anchors you need to install.
Safety Precautions: Wear appropriate safety gear, including safety glasses and ear protection, during drilling. If drilling in concrete, consider wearing a dust mask to protect against airborne particles.
